첫 문단 들여쓰기 LaTeX에서 문서를 만들때, 첫 문단은 들여쓰기가 안되고, 두번째 문단 부터는 들여쓰기가 되는 현상이 나타난다. (관습이라고 합니다.) 첫 문단을 들여쓰기 하고 싶을 때는 다음과 같은 코드를 서두에 선언하시면 됩니다. \usepackage{indentfirst} \setlength{\parindent}{0.2in} % 들여쓰기 길이 설정 \setlength{\parskip}{1mm} % 문단 간의 간격 조절 LaTeX 2024.05.24
Tips for IEEEtran class You may in stuck while preparing a manuscript for IEEE Transactions journal using LaTeX. Here is some tips. 1. Putting large figures in a double-column style. IEEE Transactions journals only allow to submit a manuscript prepared in double-column style. It makes hard to put large-scale figures. Some journals use \widetext command when you need a single column. In IEEEtran class, you have to put f.. LaTeX 2023.11.06

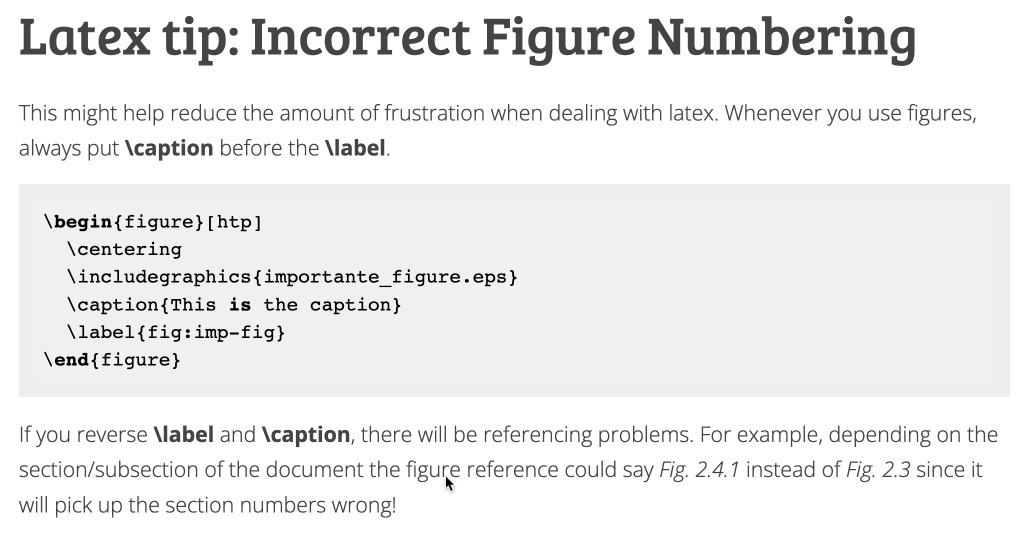

LaTeX에서 그림 번호가 그림 순서와 다르게 표시될때 LaTeX에서 그림을 참조할때, \label 명령어로 해당 그림을 지정하고, \ref 명령어로 해당 그림을 불러올 수 있다. 다만, 그림에서 \label 명령어가 \caption 명령어 보다 앞에 나올 경우, 해당 그림의 번호가 원래 순서의 번호가 아니라 다른 번호로 출력이 된다. \begin{figure}[htp] \centering \includegraphics{importante_figure.eps} \caption{This is the caption} \label{fig:imp-fig} \end{figure} LaTeX 2022.12.31

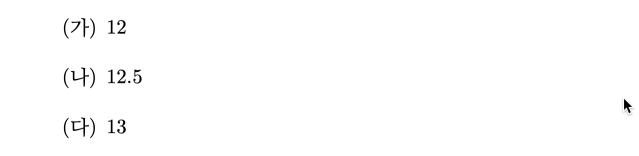

(가),(나),(다)...혹은 ㄱ, ㄴ, ㄷ, ㄹ...만들기 한글 문제집을 만들때, itemize를 이용해 보기를 만들때, 한글로 표현하고자 할때는 다음과 같이 표현한다. 이때 서두에 \usepackage{dhucs-enumnerate} 의 선언이 필요하다. 본문에 다음과 같이 기술하면 된다. 형태를 변형할때는 [(가)] 를 [ㄱ)] 으로 하면 된다. \begin{enumerate}[(가)] \item 12 \item 12.5 \item 13 \end{enumerate} 출력되는 결과는 다음과 같다. LaTeX 2022.12.26

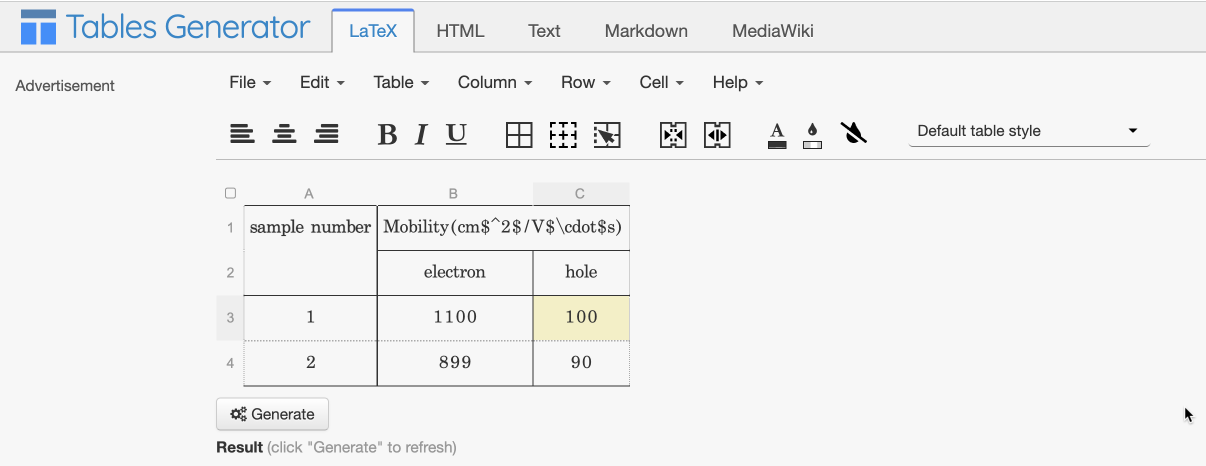

Table을 쉽게 만들기 LaTeX에서 표를 만드는 과정은 매우 익숙한 TeX 사용자가 아니라면, 자료나 인터넷을 참조하게 된다. 간단한 표 같은 경우에는 쉽게 작성을 하지만, 조금 복잡한 표 같은 경우는, 자주 에러를 접하게 된다. 시각적으로 표를 만들고, 이 표를 LaTeX 코드를 변환해주는 사이트가 있어서 소개를 한다. https://www.tablesgenerator.com/ LaTeX 2022.12.26

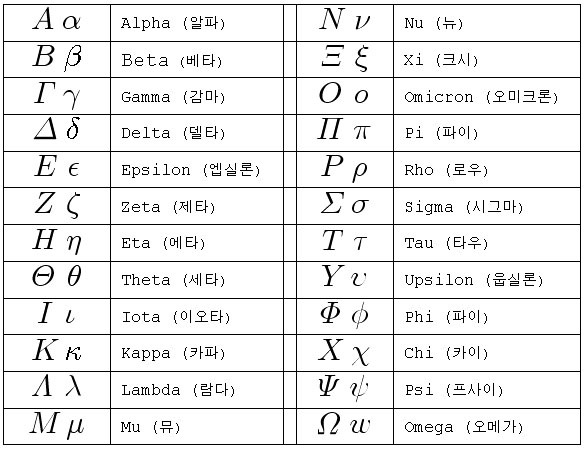

LaTeX 기호 모음 LaTeX 사용한지 오래되면, 대부분의 문자 표현식을 기억하고 있지만, 가끔씩 생각이 나지 않을때를 대비해 자주 쓰는 기호를 모아보았다. 1. 그리스 문자 α \alpha β \beta γ \gamma δ \delta ϵ \epsilon ζ \zeta η \eta θ \theta ι \iota κ \kappa λ \lambda μ \mu ν \nu ξ \xi o o (omicron) π \pi ρ \rho σ \sigma τ \tau υ \upsilon ϕ \phi χ \chi ψ \psi ω \omega ε \varepsilon ϑ \vartheta ϰ \varkappa ϖ \varpi ϱ \varrho φ \varphi ς \varsigma A A (Alpha) B B (Beta) Γ \Gamma Δ.. LaTeX 2022.09.28

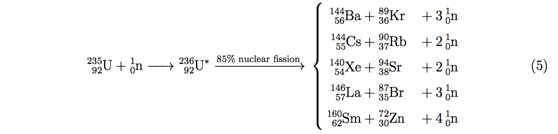

Decay chain을 LaTeX로 표현하기 \usepackage{amssymb, amsmath} \usepackage{mhchem} % 해당 패키지를 사용해야 한다. \begin{equation} \ce{^{235}_{92}U + ^{1}_{0}n -> ^{236}_{92}U^{*} ->[\text{85\% nuclear fission}]} \begin{cases} \begin{align*} \ce{^{144}_{56}Ba &+ ^{89}_{36}Kr &+ 3^{1}_{0}n} \\ \ce{^{144}_{55}Cs &+ ^{90}_{37}Rb &+ 2^{1}_{0}n} \\ \ce{^{140}_{54}Xe &+ ^{94}_{38}Sr &+ 2^{1}_{0}n} \\ \ce{^{146}_{57}La &+ ^{87}_{35}Br &+ 3^{1}_{0.. LaTeX 2022.03.25
Bibtex error in TexMaker 1. The "Quick Build" command in Texmaker is a shortcut to execute a series of commands at once. What specific serie is executed can be configured via Options -> Configure Texmaker -> Quick Build. The default is set to "PdfLaTex + View PDF". Changing this to "PdfLaTex + Bib(la)tex + PdfLaTex (x2) + View PDF" solves the problem and allows one to compile and view the project in one command. 2. Ther.. LaTeX 2021.12.13
행렬 만드기 \rm M = \left[ {\begin{array}{ccc} -2 & 1 & -2 \\ 1 & 4 & 1 \\ -2 & 1 & -2 \\ \end{array} } \right] LaTeX 2021.10.10
Symbol of atomic elements For chemistry typesetting, you should use one of the specialized packages, such as mhchem. This example is taken from mhchem documentation: \ce{^{227}_{90}Th+} It will typeset the symbol for a positive Thorium ion with a charge of 90 and atomic mass of 227. LaTeX 2021.06.01

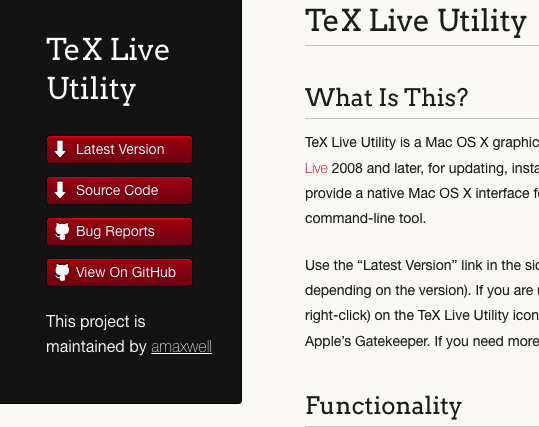

MacTeX 에서 TexLive Utility가 설치가 안될때.. Mac 시스템에서 LaTeX를 사용하기 위해서는 MacTeX를 설치해야 한다. 카탈리나 까지는 MacTeX을 설치하면, 업데이트 혹은 삭제를 위한 TeXLive Utility가 설치되는데, Big Sur 설치 후 MaxTeX 을 재설치 했는데, TeXLive Utility가 설치가 되지를 않는 문제가 발생함. 검색으로 TeXLive Utility 최신버전을 찾아서 설치를 하고, 정상적으로 업데이트 확인을 함. 아래 링크는 TeXLive Utility를 다운받는 웹사이트임. github.com/amaxwell/tlutility/releases/tag/1.41 Release 1.41 · amaxwell/tlutility RELEASE: 20210120 build (1.41) github.com LaTeX 2021.01.22
